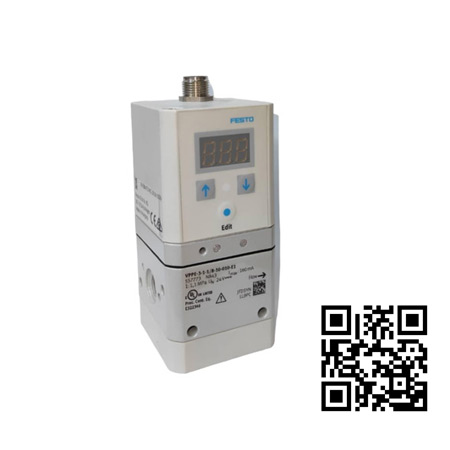

| Nominal diameter, pressurisation |
5 mm |
| Nominal diameter, exhaust |
2.5 mm |
| Type of actuation |
electrical |
| Sealing principle |
soft |
| Assembly position |
Any
Preferably upright |
| Design structure |
Pilot actuated diaphragm regulator |
| Short circuit strength |
for all electrical connections |
| Safety instructions |
VPPE safety position: If the power supply cable is interrupted, output pressure is maintained unregulated. |
| Polarity protected |
for all electrical connections |
| Type of reset |
mechanical spring |
| Type of piloting |
Piloted |
| Valve function |
3-way proportional-pressure regulator |
| Type of display |
LED display
3-digit |
| Pressure regulation range |
0.1 … 10 bar |
| Inlet pressure 1 |
6 … 11 bar |
| Max. pressure hysteresis |
0.05 bar |
| Standard nominal flow rate |
1,250 l/min |
| Operating voltage range DC |
21.6 … 26.4 V |
| Max. current consumption |
160 mA |
| Duty cycle |
100 % |
| Max. electrical power consumption |
4.2 W |
| Residual ripple |
10 % |
| Switch output |
PNP |
| Signal range, analogue output |
0 – 10 V |
| Signal range, analogue input |
0 – 10 V |
| Operating medium |
Compressed air in accordance with ISO8573-1:2010 [7:4:4]
Inert gases |
| Note on operating and pilot medium |
Lubricated operation not possible |
| Authorisation |
RCM Mark
c UL us – Listed (OL) |
| KC mark |
KC-EMV |
| CE mark (see declaration of conformity) |
to EU directive for EMC |
| Corrosion resistance classification CRC |
2 – Moderate corrosion stress |
| Medium temperature |
10 … 50 °C |
| Protection class |
IP65 |
| Ambient temperature |
0 … 60 °C |
| Product weight |
390 g |
| Linearity error in ± %FS |
1 %FS |
| Temperature coefficient |
0.04 %/K |
| Repetition accuracy in ± %FS |
0.5 %FS |
| Electrical connection |
5-pin
M12
Plug |
| Mounting type |
with through hole |
| Pneumatic connection, port 1 |
G1/8 |
| Pneumatic connection, port 2 |
G1/8 |
| Pneumatic connection, port 3 |
G1/8 |
| Materials note |
Free of copper and PTFE
Conforms to RoHS |
| Material housing |
Wrought Aluminium alloy
Anodised |
